Deployment Guide for Azure

Get ready to launch Hyperglance into your Azure Subscription!

1. Prerequisites - Before you start

We know you're excited to get going but it pays to be prepared, make sure you the have following things ready:

  1. Choose or create a suitable VNet and Subnet that will host Hyperglance. See section "1.1 Creating a suitable network environment" below.
  2. Set up Cost Exports - This is how Hyperglance ingests your billing data.

1.1 Creating a suitable network environment

Easiest Option -- For trials and simple installs

The easiest way to deploy Hyperglance is as a public VM. When prompted by the ARM template choose the option to create/attach a public IP address.

When deploying Hyperglance you will be prompted to select (or create) a VNet and Subnet to deploy the Hyperglance Virtual Machine into.

To operate correctly the Hyperglance VM needs to be launched into a networking environment that allows the following types of access:

  • Outbound access:
    • To the Azure APIs.
  • Inbound access:
    • Users need HTTPS inbound access to reach the Hyperglance web interface
    • Admins may also want SSH access (if not using SSM)

Examples:

Outbound access to the AWS APIs can be achieved in a few ways, for example:

  • The VM is given a Public IP
  • The VM communicates through a NAT Gateway

Inbound access for users to reach Hyperglance can be achieved in a few ways, for example:

  • The VM is given a Public IP
  • The VM is placed behind a LoadBalancer
  • A VPN connection into the cloud environment
  • A Bastion Host through which users will connect to first



2. Launch the ARM template

Click a button to launch:

Deploy to Azure

Deploy To Azure US Gov

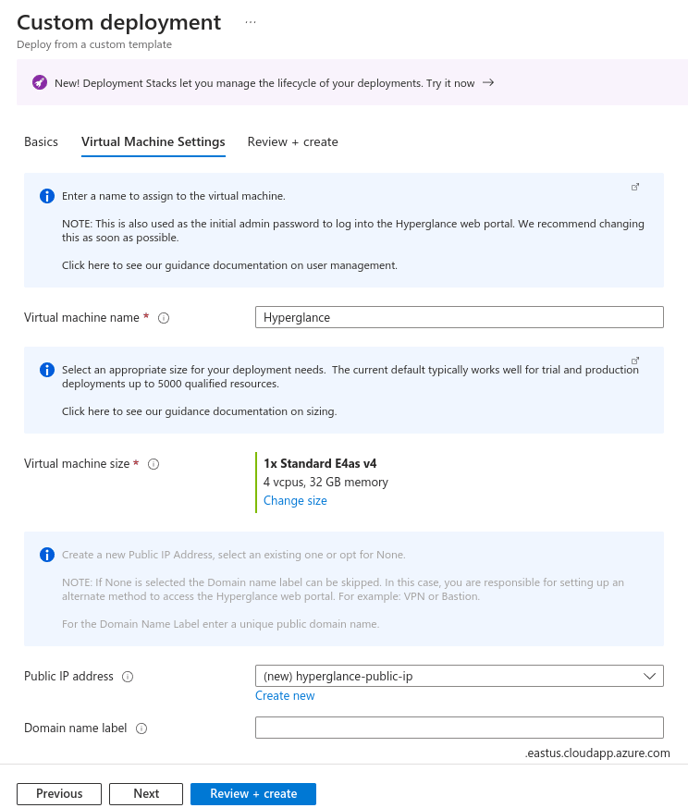

The Hyperglance ARM template uses a custom UI definition to provide you with helpful notes and prompts to guide you through deploying the stack field by field:

The ARM template itself can be found in our github deploy repo.



3. Log in and activate

Congratulations you have deployed Hyperglance into your cloud environment!

Now log in and activate:

  • Visit:   https://IP_OF_YOUR_VM
  • At the login screen the default login user details are:
    • Username: admin
    • Password: The Computer Name you assigned to the VM
  • Follow the on-screen prompts to accept the EULA and activate the product with a commercial license key or start a trial.

4. Connecting subscriptions

Follow these guides to connect your Hyperglance instance to connect subscriptions, other cloud providers and other 3rd party tooling
